| 1 | Equilibration in two communicating oil tanks |
|
|

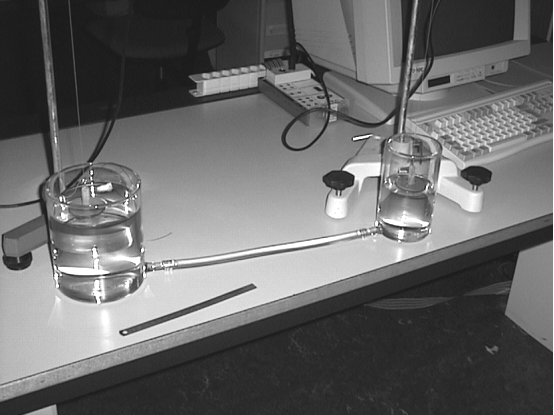

| Main | Two cylindrical tanks are connected by a hose at the bottom. Oil in one of the tanks flows into the second tank. Levels in both tanks are measured as functions of time. More…
|
| Photographs | |
| Movies | |
| Data files | |
| Model files | |
| |
Sections | |
| |
Description | DESCRIPTION OF EXPERIMENT |
| Experiment |
|
| Dimensions |
|
| |
Sections | |
| |
Assignment | A POSSIBLE PATH THROUGH THE INVESTIGATION… |
| Basics | |
Particulars |
|
| |
Sections | |
| |
Model | MODEL EQUATIONS AND MORE… |

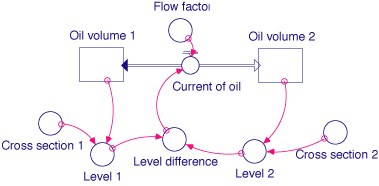

| | Laws of balance Oil_volume_1(t) = Oil_volume_1(t - dt) + (- Current_of_oil) * dt
INIT Oil_volume_1 = Cross_section_1*h1_init
Oil_volume_2(t) = Oil_volume_2(t - dt) + (Current_of_oil) * dt
INIT Oil_volume_2 = Cross_section_2*h2_init
Flows Current_of_oil = Flow_factor*Level_difference
Relations Level_1 = Oil_volume_1/Cross_section_1
Level_2 = Oil_volume_2/Cross_section_2
Level_difference = Level_1-Level_2
Parameters Cross_section_1 = 0.01131
Cross_section_2 = 0.00525
Flow_factor = 0.50e-4
h1_init = 0.1405
h2_init = 0.0517
|
| |
Sections | |
| |
Questions | SOME SIMPLE QUESTIONS… |
| |
| |
Sections | |
| |
